Прямые гайка-штуцер S серия в сборе с В4

Уточнить цену
Прямые гайка-штуцер S серия в сборе с В4
Если Вы хотите заказать изделие из нержавеющей стали, замените первые две цифры артикула с 60.... на 61....

Характеристики

Изделия из нержавеющей стали

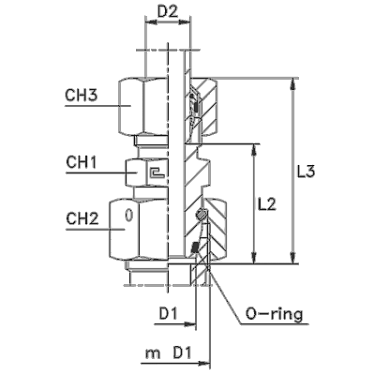

Артикул Бренд серия WP (bar) Ø трубы D1 Ø трубы D2 резьба m D1 L2 L3 CH1 CH2 CH3
615451.4 CAST S/L 315 16 12 24x1.5 37.5 52.5 22 30 22
615415.4 CAST S 400 25 8 36x2 45.5 60.5 32 46 19
615424.4 CAST S 250 38 10 52x2 51.5 68 50 60 22
615423.4 CAST S 250 30 10 42x2 49.5 66 41 50 22
615422.4 CAST S 400 25 10 36x2 45 61.5 32 46 22
615421.4 CAST S 400 20 10 30x2 40.5 57 27 36 22
615420.4 CAST S 400 16 10 24x1.5 38 54.5 22 30 22
615419.4 CAST S 630 14 10 22x1.5 33.5 50 19 27 22
615418.4 CAST S 630 12 10 20x1.5 31 47.5 19 24 22
615417.4 CAST S 315 38 8 52x2 52 67 50 60 19
615416.4 CAST S 400 30 8 42x2 50 65 41 50 19
615414.4 CAST S 400 20 8 30x2 41 56 27 36 19
615426.4 CAST S 400 16 12 24x1.5 38 54.5 22 30 24
615413.4 CAST S 400 16 8 24x1.5 38.5 53.5 22 30 19
615412.4 CAST S 630 14 8 22x1.5 34 49 19 27 19
615411.4 CAST S 630 12 8 20x1.5 31.5 46.5 17 24 19
615410.4 CAST S 630 10 8 18x1.5 31.5 46.5 17 22 19
615409.4 CAST S 315 38 6 52x2 52 67 50 60 17
615408.4 CAST S 400 30 6 42x2 50 65 41 50 17
615407.4 CAST S 400 25 6 36x2 45.5 60.5 32 46 17
615406.4 CAST S 400 20 6 30x2 41 56 27 36 17
615405.4 CAST S 400 16 6 24x1.5 38.5 53.5 22 30 17
615404.4 CAST S 630 14 6 22x1.5 34 49 19 27 17
615425.4 CAST S 630 14 12 22x1.5 35.5 52 22 27 24
615427.4 CAST S 400 20 12 30x2 40.5 57 27 36 24
615402.4 CAST S 630 10 6 18x1.5 32 47 17 22 17
615440.4 CAST S 400 25 20 36x2 46 67.5 32 46 36
615450.4 CAST S/L 315 12 10 20x1.5 30.5 45.5 17 24 19
615449.4 CAST S/L 315 12 8 20x1.5 29.5 44.5 17 24 17
615448.4 CAST S/L 315 10 8 18x1.5 30 45 17 22 17
615447.4 CAST S/L 315 10 6 18x1.5 30 45 17 22 14
615446.4 CAST S/L 315 8 6 16x1.5 27 42 14 19 14
615445.4 CAST S 315 38 30 52x2 53.5 80 50 60 50
615444.4 CAST S 315 38 25 52x2 53 77 50 60 46
615443.4 CAST S 400 30 25 42x2 51 75 41 50 46
615442.4 CAST S 400 38 20 52x2 52.5 74 50 60 36
615441.4 CAST S 400 30 20 42x2 50.5 72 41 50 36
615439.4 CAST S 315 38 16 52x2 52.5 71 50 60 30
615428.4 CAST S 400 25 12 36x2 45 61.5 32 46 24
615438.4 CAST S 400 30 16 42x2 50.5 69 41 50 30
615437.4 CAST S 400 25 16 36x2 46 64.5 32 46 30
615436.4 CAST S 400 20 16 30x2 41.5 60 27 36 30
615435.4 CAST S 250 38 14 52x2 53 71 50 60 27
615434.4 CAST S 250 30 14 42x2 51 69 41 50 27
615433.4 CAST S 400 25 14 36x2 46.5 64.5 32 46 27
615432.4 CAST S 400 20 14 30x2 42 60 27 36 27
615431.4 CAST S 400 16 14 24x1.5 39.5 57.5 24 30 27
615430.4 CAST S 315 38 12 52x2 51.5 68 50 60 24
615429.4 CAST S 400 30 12 42x2 49.5 66 41 50 24
615403.4 CAST S 630 12 6 20x1.5 31.5 46.5 17 24 17
615401.4 CAST S 630 8 6 16x1.5 29 44 14 19 17

Изделия из углеродистой стали

Артикул Бренд серия WP (bar) Ø трубы D1 Ø трубы D2 резьба m D1 L2 L3 CH1 CH2 CH3
605402.4 CAST S 800 10 6 18x1.5 32 47 17 22 17
605414.4 CAST S 420 20 8 30x2 41 56 27 36 19
605424.4 CAST S 420 38 10 52x2 51.5 68 50 60 22
605423.4 CAST S 420 30 10 42x2 49.5 66 41 50 22
605422.4 CAST S 420 25 10 36x2 45 61.5 32 46 22
605421.4 CAST S 420 20 10 30x2 40.5 57 27 36 22
605420.4 CAST S 630 16 10 24x1.5 38 54.5 22 30 22
605419.4 CAST S 630 14 10 22x1.5 33.5 50 19 27 22
605418.4 CAST S 630 12 10 20x1.5 31 47.5 19 24 22
605417.4 CAST S 420 38 8 52x2 52 67 50 60 19
605416.4 CAST S 420 30 8 42x2 50 65 41 50 19
605415.4 CAST S 420 25 8 36x2 45.5 60.5 32 46 19
605413.4 CAST S 630 16 8 24x1.5 38.5 53.5 22 30 19
605426.4 CAST S 630 16 12 24x1.5 38 54.5 22 30 24
605412.4 CAST S 630 14 8 22x1.5 34 49 19 27 19
605411.4 CAST S 630 12 8 20x1.5 31.5 46.5 17 24 19
605410.4 CAST S 800 10 8 18x1.5 31.5 46.5 17 22 19
605409.4 CAST S 420 38 6 52x2 52 67 50 60 17
605408.4 CAST S 420 30 6 42x2 50 65 41 50 17
605407.4 CAST S 420 25 6 36x2 45.5 60.5 32 46 17
605406.4 CAST S 420 20 6 30x2 41 56 27 36 17
605405.4 CAST S 630 16 6 24x1.5 38.5 53.5 22 30 17
605404.4 CAST S 630 14 6 22x1.5 34 49 19 27 17
605403.4 CAST S 630 12 6 20x1.5 31.5 46.5 17 24 17
605425.4 CAST S 630 14 12 22x1.5 35.5 52 22 27 24
605427.4 CAST S 420 20 12 30x2 40.5 57 27 36 24
605451.4 CAST S/L 400 16 12 24x1.5 37.5 52.5 22 30 22
605440.4 CAST S 420 25 20 36x2 46 67.5 32 46 36
605450.4 CAST S/L 500 12 10 20x1.5 30.5 45.5 17 24 19
605449.4 CAST S/L 500 12 8 20x1.5 29.5 44.5 17 24 17
605448.4 CAST S/L 500 10 8 18x1.5 30 45 17 22 17
605447.4 CAST S/L 500 10 6 18x1.5 30 45 17 22 14
605446.4 CAST S/L 500 8 6 16x1.5 27 42 14 19 14
605445.4 CAST S 420 38 30 52x2 53.5 80 50 60 50
605444.4 CAST S 420 38 25 52x2 53 77 50 60 46
605443.4 CAST S 420 30 25 42x2 51 75 41 50 46
605442.4 CAST S 420 38 20 52x2 52.5 74 50 60 36
605441.4 CAST S 420 30 20 42x2 50.5 72 41 50 36
605439.4 CAST S 420 38 16 52x2 52.5 71 50 60 30
605428.4 CAST S 420 25 12 36x2 45 61.5 32 46 24
605438.4 CAST S 420 30 16 42x2 50.5 69 41 50 30
605437.4 CAST S 420 25 16 36x2 46 64.5 32 46 30
605436.4 CAST S 420 20 16 30x2 41.5 60 27 36 30
605435.4 CAST S 420 38 14 52x2 53 71 50 60 27
605434.4 CAST S 420 30 14 42x2 51 69 41 50 27
605433.4 CAST S 420 25 14 36x2 46.5 64.5 32 46 27
605432.4 CAST S 420 20 14 30x2 42 60 27 36 27
605431.4 CAST S 630 16 14 24x1.5 39.5 57.5 24 30 27
605430.4 CAST S 420 38 12 52x2 51.5 68 50 60 24
605429.4 CAST S 420 30 12 42x2 49.5 66 41 50 24
605401.4 CAST S 800 8 6 16x1.5 29 44 14 19 17
