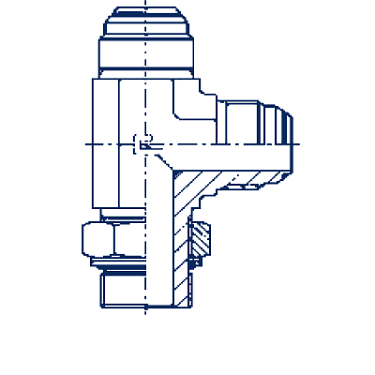

L-образные BSP, уплотнение тип G

Уточнить цену
L-образные BSP, уплотнение тип G
Если Вы хотите заказать изделие из нержавеющей стали, замените первые две цифры артикула с 20.... на 21....

Характеристики

Изделия из нержавеющей стали

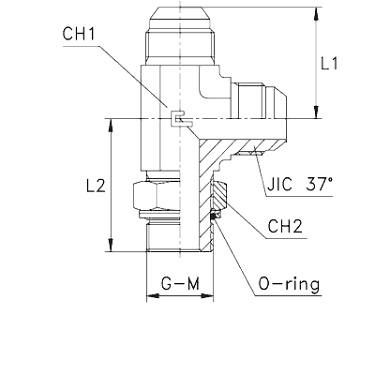

Артикул Бренд серия WP (bar) Ø трубы D1 Ø трубы W резьба G L1 L2 CH1 CH2 резьба JIC 37° A
215010.3 CAST UNIVERSALE 315 6 1/4 1/4 24 32 14 19 7/16-20
215009.3 CAST UNIVERSALE 160 38 11/2 11/2 59 60 48 55 17/8-12
215011.3 CAST UNIVERSALE 250 6 1/4 3/8 29 37 19 22 7/16-20
215012.3 CAST UNIVERSALE 250 6 1/4 1/2 31 43 22 27 7/16-20
215013.3 CAST UNIVERSALE 350 8 5/16 1/8 24 30 14 14 1/2-20
215008.3 CAST UNIVERSALE 200 30-32 11/4 11/4 53 58 41 50 15/8-12
215007.3 CAST UNIVERSALE 200 25 1 1 46 52 33 41 15/16-12
215003.3 CAST UNIVERSALE 315 10 3/8 1/4 27.5 32 14 19 9/16-18
215002.3 CAST UNIVERSALE 315 8 5/16 1/4 24 32 14 19 1/2-20
215004.3 CAST UNIVERSALE 250 12 1/2 3/8 32 37 19 22 3/4-16
215005.3 CAST UNIVERSALE 250 14-15-16 5/8 1/2 37 43 22 27 7/8-14
215006.3 CAST UNIVERSALE 250 18-20 3/4 3/4 42 49 27 36 11/16-12
215014.3 CAST UNIVERSALE 250 8 5/16 3/8 29 37 19 22 1/2-20
215015.3 CAST UNIVERSALE 250 10 3/8 3/8 29.5 37 19 22 9/16-18
215024.3 CAST UNIVERSALE 250 25 1 3/4 46 50 33 36 15/16-12
215023.3 CAST UNIVERSALE 200 18-20 3/4 1 45 52 33 41 11/16-12
215025.3 CAST UNIVERSALE 200 25 1 11/4 52 58 41 50 15/16-12
215026.3 CAST UNIVERSALE 200 30-32 11/4 1 53 58 41 41 15/8-12
215027.3 CAST UNIVERSALE 200 38 11/2 11/4 59 60 48 50 17/8-12
215022.3 CAST UNIVERSALE 250 18-20 3/4 1/2 42 47 27 27 11/16-12
215021.3 CAST UNIVERSALE 250 14-15-16 5/8 3/4 39 49 27 36 7/8-14
215017.3 CAST UNIVERSALE 315 12 1/2 1/4 32 37 19 19 3/4-16
215016.3 CAST UNIVERSALE 250 10 3/8 1/2 31.5 43 22 27 9/16-18
215018.3 CAST UNIVERSALE 250 12 1/2 1/2 34 43 22 27 3/4-16
215019.3 CAST UNIVERSALE 250 12 1/2 3/4 36 49 27 36 3/4-16
215020.3 CAST UNIVERSALE 250 14-15-16 5/8 3/8 37 37.5 22 22 7/8-14
215001.3 CAST UNIVERSALE 350 6 1/4 1/8 23 26 11 14 7/16-20

Изделия из углеродистой стали

Артикул Бренд серия WP (bar) Ø трубы D1 Ø трубы W резьба G L1 L2 CH1 CH2 резьба JIC 37° A
205027.3 CAST UNIVERSALE 200 38 11/2 11/4 59 60 48 50 17/8-12
205010.3 CAST UNIVERSALE 315 6 1/4 1/4 24 32 14 19 7/16-20
205009.3 CAST UNIVERSALE 160 38 11/2 11/2 59 60 48 55 17/8-12
205011.3 CAST UNIVERSALE 250 6 1/4 3/8 29 37 19 22 7/16-20
205012.3 CAST UNIVERSALE 250 6 1/4 1/2 31 43 22 27 7/16-20
205013.3 CAST UNIVERSALE 350 8 5/16 1/8 24 30 14 14 1/2-20
205008.3 CAST UNIVERSALE 200 30-32 11/4 11/4 53 58 41 50 15/8-12
205007.3 CAST UNIVERSALE 200 25 1 1 46 52 33 41 15/16-12
205003.3 CAST UNIVERSALE 315 10 3/8 1/4 27.5 32 14 19 9/16-18
205002.3 CAST UNIVERSALE 315 8 5/16 1/4 24 32 14 19 1/2-20
205004.3 CAST UNIVERSALE 250 12 1/2 3/8 32 37 19 22 3/4-16
205005.3 CAST UNIVERSALE 250 14-15-16 5/8 1/2 37 43 22 27 7/8-14
205006.3 CAST UNIVERSALE 250 18-20 3/4 3/4 42 49 27 36 11/16-12
205014.3 CAST UNIVERSALE 250 8 5/16 3/8 29 37 19 22 1/2-20
205015.3 CAST UNIVERSALE 250 10 3/8 3/8 29.5 37 19 22 9/16-18
205023.3 CAST UNIVERSALE 200 18-20 3/4 1 45 52 33 41 11/16-12
205022.3 CAST UNIVERSALE 250 18-20 3/4 1/2 42 47 27 27 11/16-12
205024.3 CAST UNIVERSALE 250 25 1 3/4 46 50 33 36 15/16-12
205025.3 CAST UNIVERSALE 200 25 1 11/4 52 58 41 50 15/16-12
205026.3 CAST UNIVERSALE 200 30-32 11/4 1 53 58 41 41 15/8-12
205021.3 CAST UNIVERSALE 250 14-15-16 5/8 3/4 39 49 27 36 7/8-14
205020.3 CAST UNIVERSALE 250 14-15-16 5/8 3/8 37 37.5 22 22 7/8-14
205016.3 CAST UNIVERSALE 250 10 3/8 1/2 31.5 43 22 27 9/16-18
205017.3 CAST UNIVERSALE 315 12 1/2 1/4 32 37 19 19 3/4-16
205018.3 CAST UNIVERSALE 250 12 1/2 1/2 34 43 22 27 3/4-16
205019.3 CAST UNIVERSALE 250 12 1/2 3/4 36 49 27 36 3/4-16
205001.3 CAST UNIVERSALE 350 6 1/4 1/8 23 26 11 14 7/16-20
